1 Ton, Mini Stand-on Skid Loader | CFG-CRT23
Original price was: $7,699.00.$6,592.88Current price is: $6,592.88.

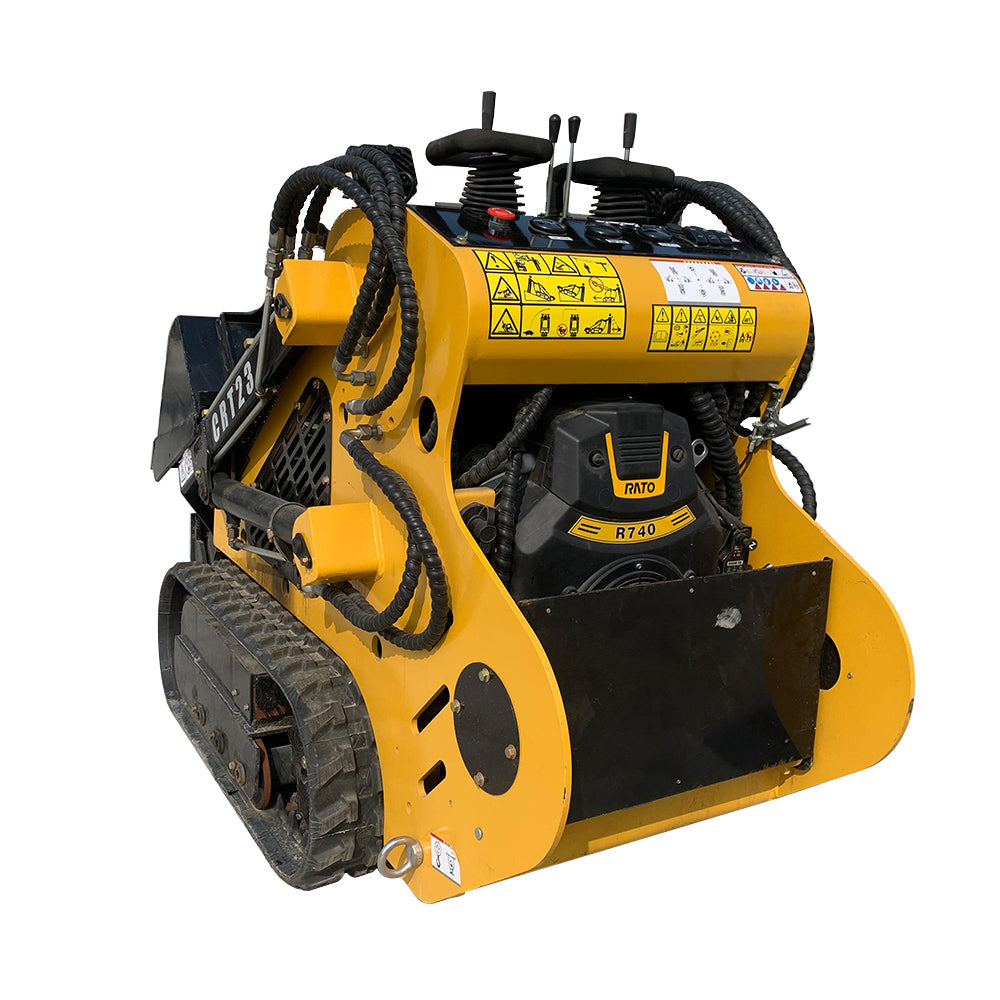

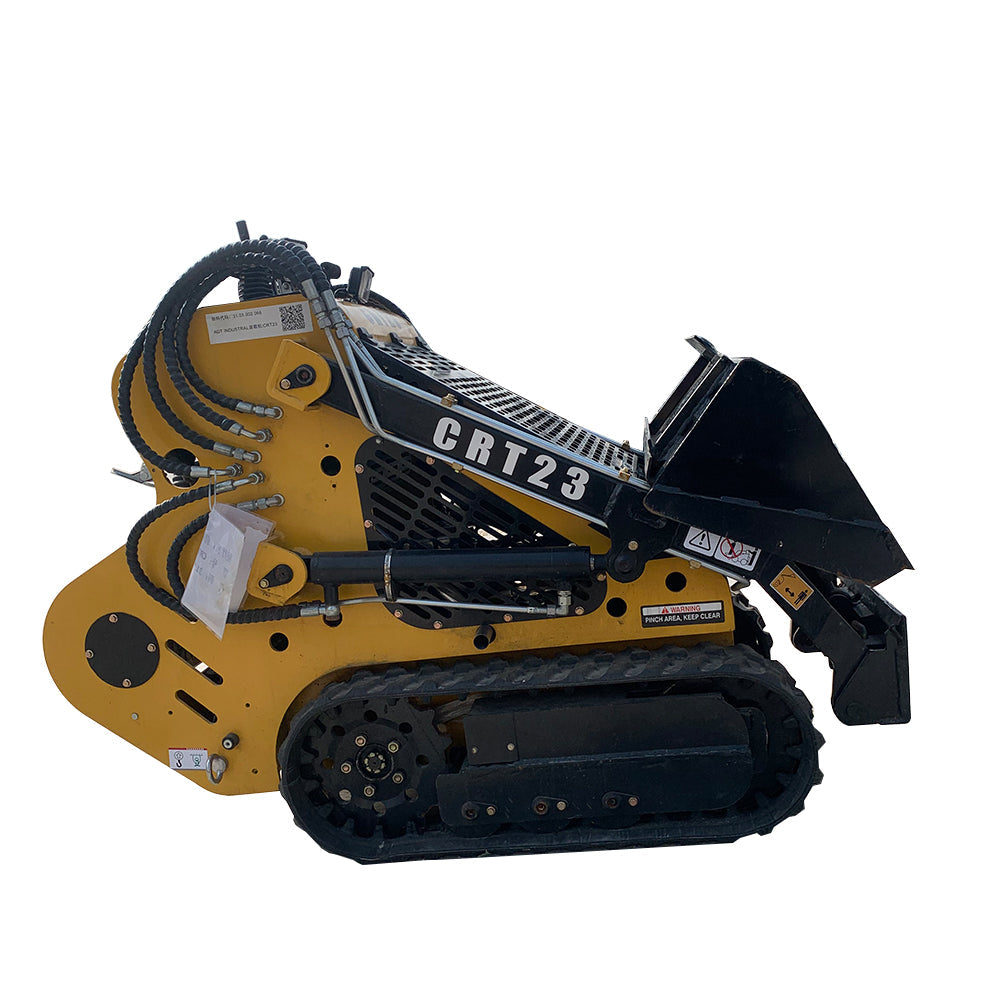

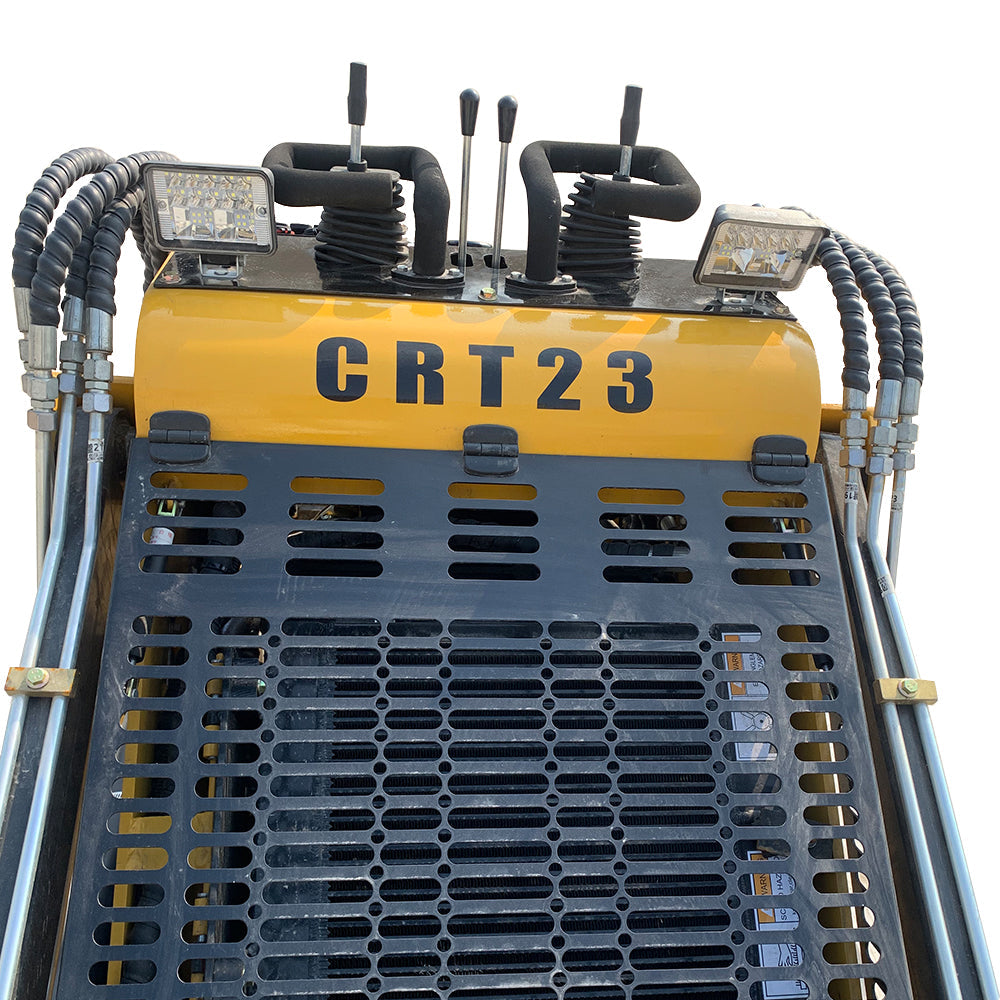

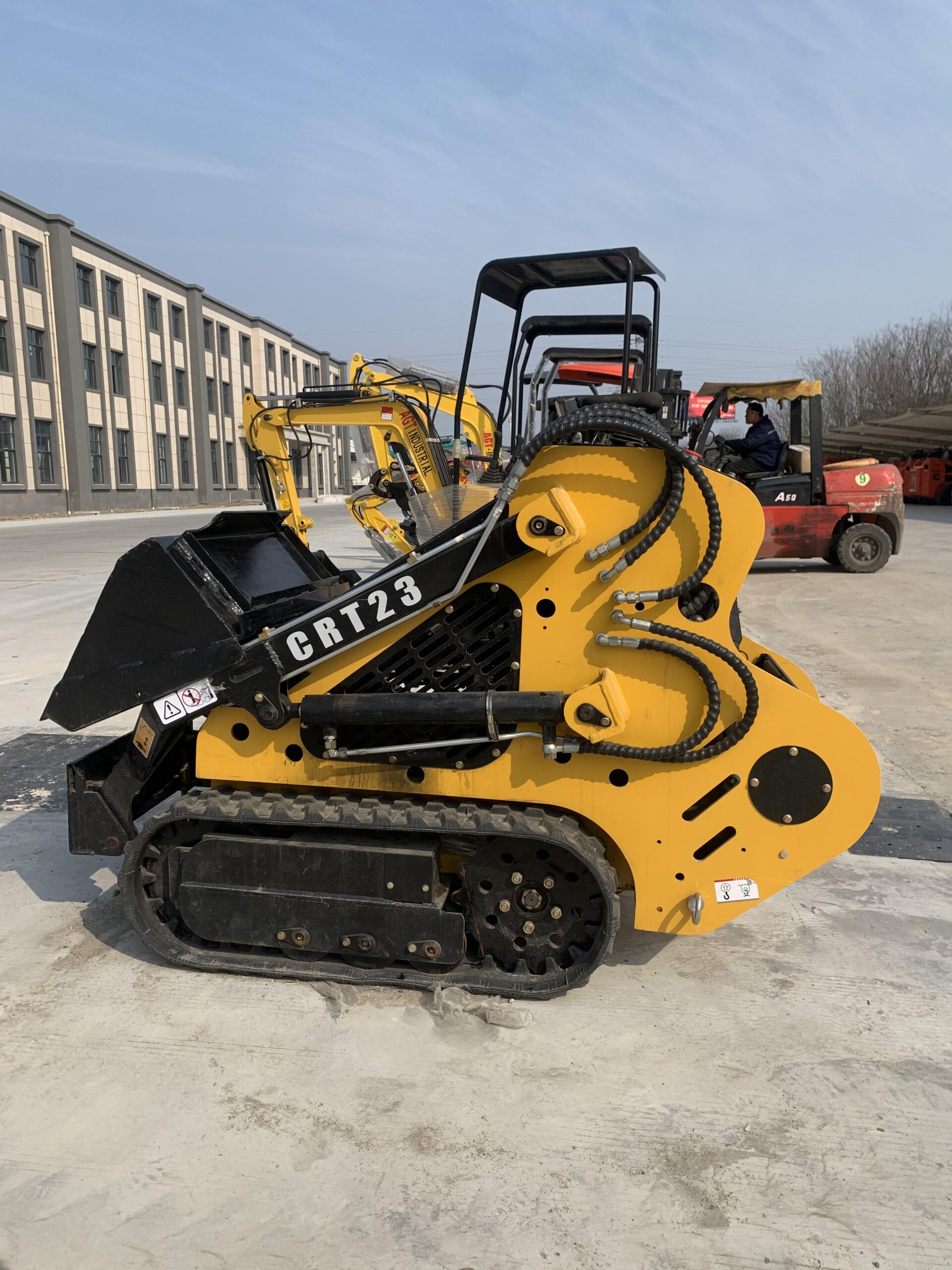

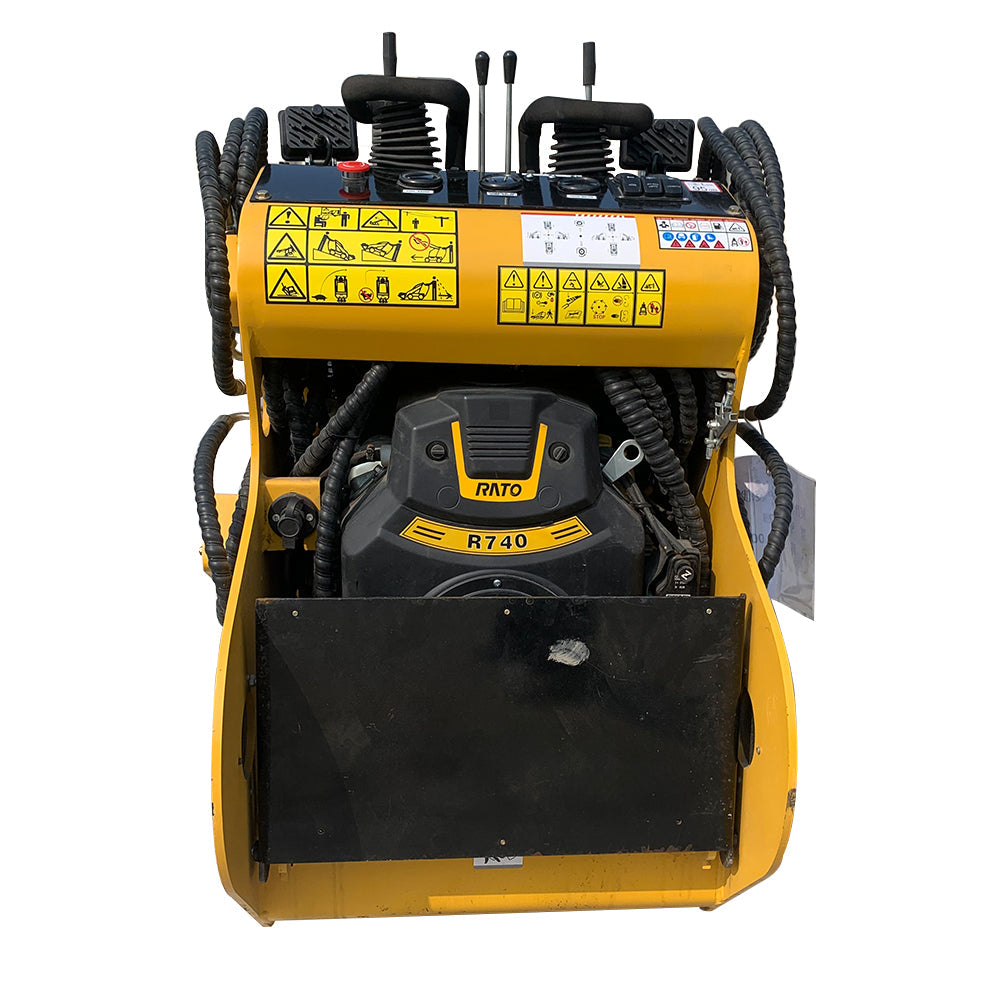

The RATO 23HP Mini Stand-On Skid Loader offers 950KG operating weight and a durable crawler design, making the CFG-CRT23 a compact yet powerful solution for heavy-duty tasks. Technical Data: Operation Weight: 1 Ton Engine: Rato Horse Power: 23 Max Angle: 30 Degree Specific Data: Engine Rato Overall…
The RATO 23HP Mini Stand-On Skid Loader offers 950KG operating weight and a durable crawler design, making the CFG-CRT23 a compact yet powerful solution for heavy-duty tasks. Technical Data: Operation Weight: 1 Ton Engine: Rato Horse Power: 23 Max Angle: 30 Degree Specific Data: Engine Rato Overall weight 982㎏ Maximum Angle of climb 30° Load Capacity 200㎏ Main valve SHMMECH Track dimension 180*72*37cm Type of track tensioning tension cylinder Max. unloading height 2650mm Max. unloading height 1860mm Max. digging radius 2570mm Max. Digging depth 1750mm Max. vertical digging depth 1500mm Min. swing radius 1290mm Tail turning radius 760mm Max. lifting height of dozer blade 325 Max. Digging depth of dozer blade 175 Basic Performance Parameters Working Weight(kg) 950 Bucket capacity(m³) 0.1 Travel speed low/high speed(Km/h) 4 Climbing ability(%) 30 Maximum lifting force (Kg) 200 C Maximum working height(mm) 2323 B Maximum pin height (mm) 2007 A Maximum unloading height(mm) 1612 G Loading distance at maximum unloading height (mm) 611 H Wheelbase(mm) 965 F Ground clearance(mm) 203 L Bucket discharge angle 23° Body E Bucket width(mm) 1120 J/K Overall Length(mm) 2181/2435 N Overall Width(mm) 1120 O Body width(mm) 826 D Overall Height(mm) 1383 M Slewing radius(mm) 1500 Engine Engine Brand Rato Engine Model 740 Max. Horsepower(pc) 27 Maximum power(Kw) 16.8 Max. speed(rpm) 3600 Displacement (cc) 739 Cylinders 2 Cooling method fan cooling Engine oil change quantity(L) 1.6 Fuel Type Gasoline Fuel Grade 92# Theoretical fuel consumption(L/h) × Hydraulic system Main pump type/model gear pumps Main pump brand (Tianjin Xingzou) Rated set pressure(Mpa) 22 Maximum flow rate of main pump(L/min) 75.6 Multi-way valve 2+2+2 Brand of Multi-way valve (Li Xin) Rated Set Pressure(Mpa) 16 Hydraulic Linear Motor type Cycloid hydraulic motor Linear Motor Brand (Dan Fusi) Motor Displacement 350 Tracks △ -Rubber (bandwidth*pitch*number of sections) 180*72*41 Wheels △ Configuration Cab × Roof × Handrail √ Tensioning Forms Hydraulic Tensioning Air Conditioning × Fuel tank Fuel tank(L) 31 Hydraulic oil tan(L) 33
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
75HP Track SKid Steer Loader
The 75-horsepower track loader is equipped with a four-cylinder supercharged engine. With its strong grip provided by the tracks, a 0.5-cubic-meter bucket, and flexible hydraulic control, it can achieve efficient operation in complex terrains. Moreover, it supports the quick replacement of multiple working devices and is widely applicable to material handling and engineering operations in various fields such as agriculture, construction, industry, and gardening.
75HP Wheel Skid Steer Loader
The 75HP wheel loader has powerful performance. The 75-horsepower engine can meet the requirements of conventional engineering projects. It can reach a speed of 40 kilometers per hour, and its driving is stable and flexible. The operation is light and precise. The bucket with a capacity of 0.5 to 0.8 cubic meters enables efficient loading and unloading. It is composed of a high-performance diesel engine, a flexible transmission system, a reliable hydraulic system, and a sturdy frame. It is widely applied in various fields such as construction, ports, mines, and agriculture, significantly improving production efficiency.
TS100 Track Skid Steer Loader
Tonghao TS100 Crawler Skid Steer Loader is a heavy-duty machine from Shandong, China, powered by a 100hp XINCHAI engine and Eaton hydraulics, designed for high-load tasks with a 1200kg loading capacity and 0.6-0.7CBM bucket. Its rugged crawler designensures stability and agility, achieving 12km/h speed and 85L fuel capacity for extended operations. Backed by a 1-year warranty and shipped securely, it excels in construction, agriculture, and industrial applications demanding power and durability.
TS125 Track Skid Steer Loader
Tonghao TS138 Crawler Skid Steer Loader features a robust WeiChai 103KW/139HP engine, Bosch Rexroth hydraulics (80/140L/min flow), and Italian Hyde cylinders for heavy-duty tasks with a 1500kg load capacity and 2400kg tipping load. Its rugged crawler design and 12/18km/h max speed ensure agility and stability, while the pilot joystick control system enhances precision in construction, agriculture, or industrial operations. Backed by a 1-year warranty and shipped securely, it delivers durability and performance for demanding environments.
Reviews
There are no reviews yet.
