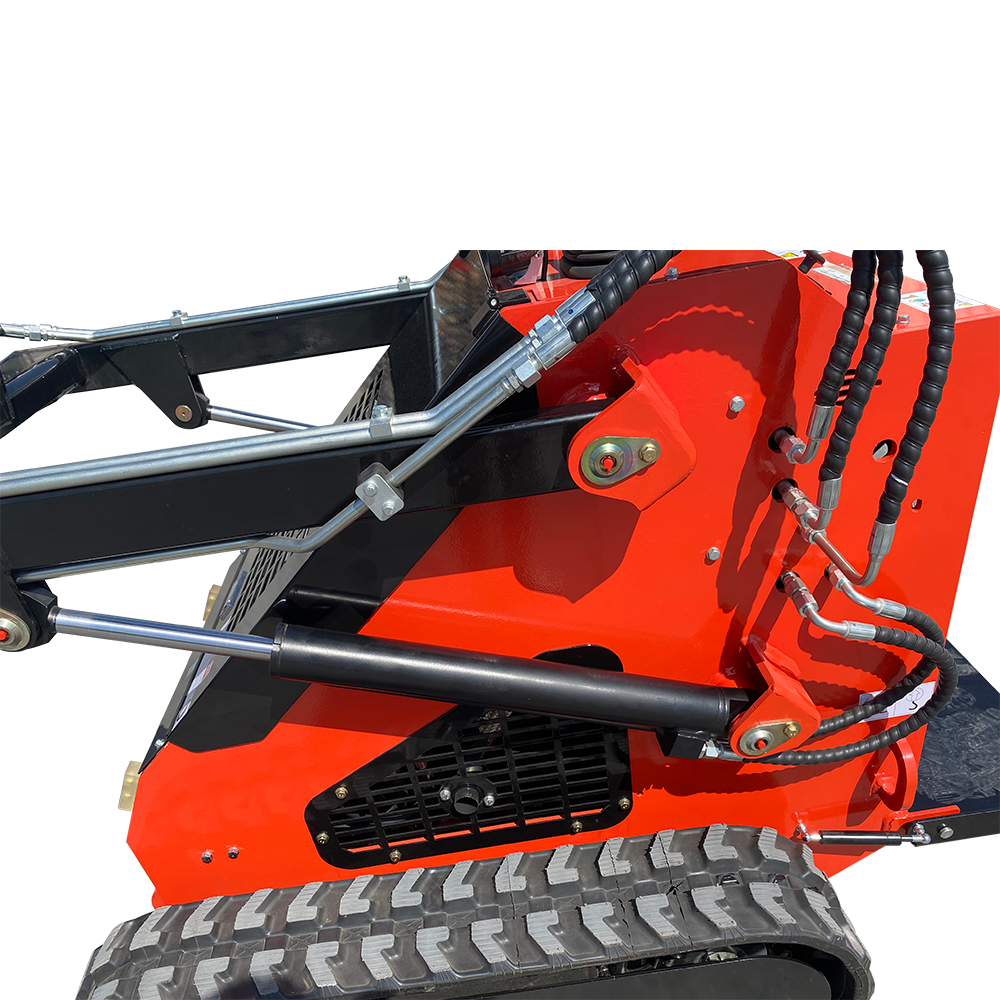

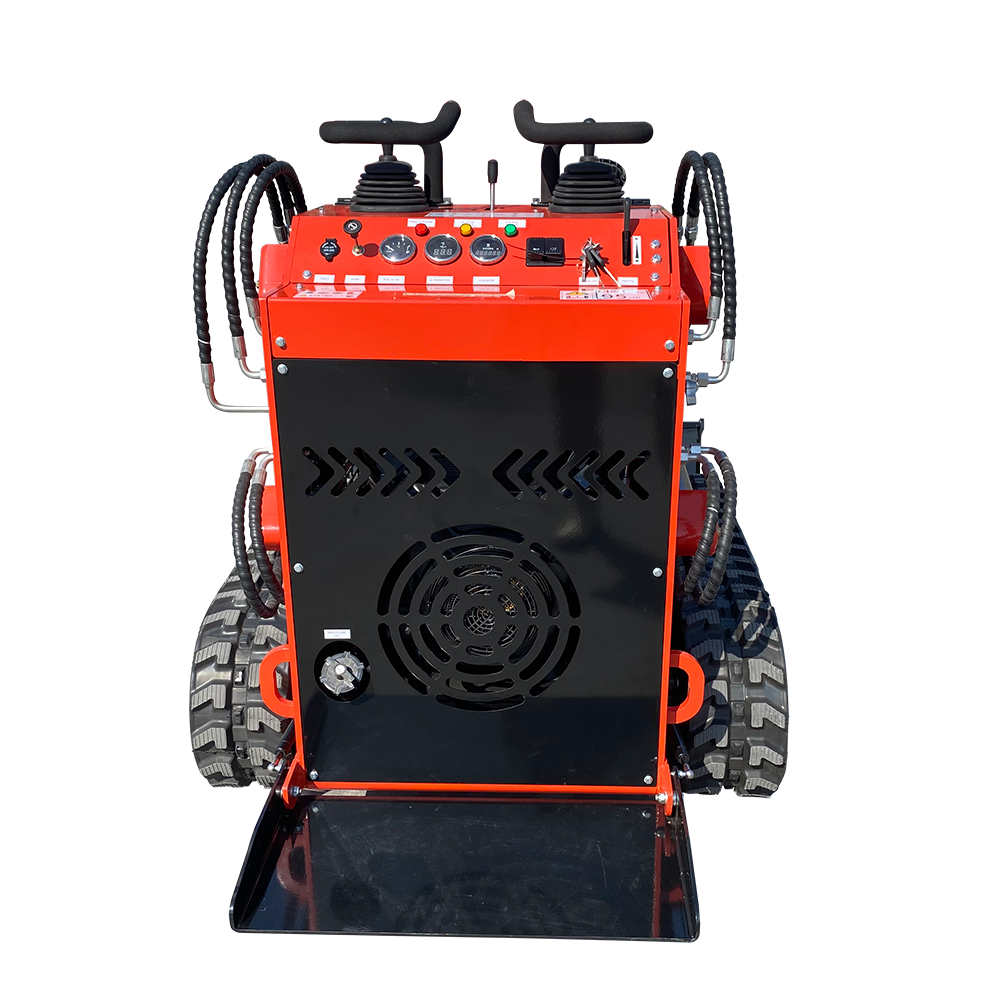

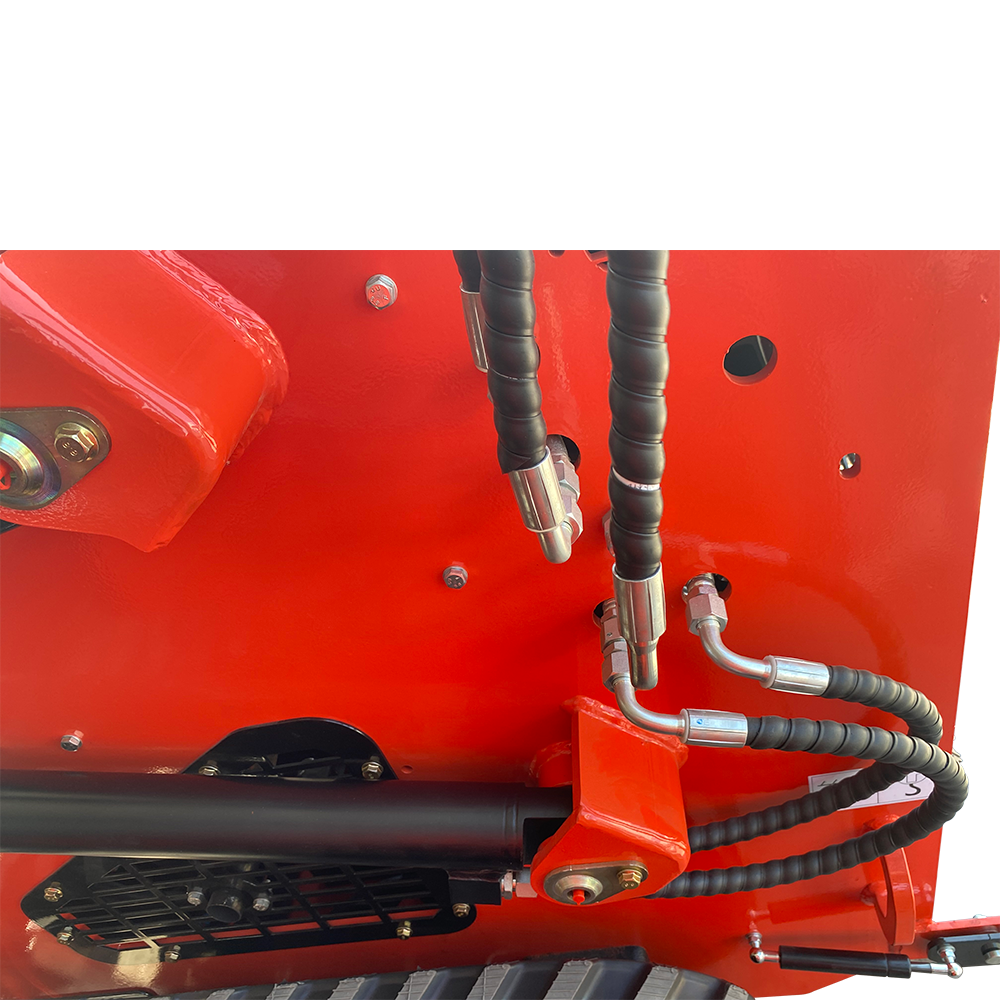

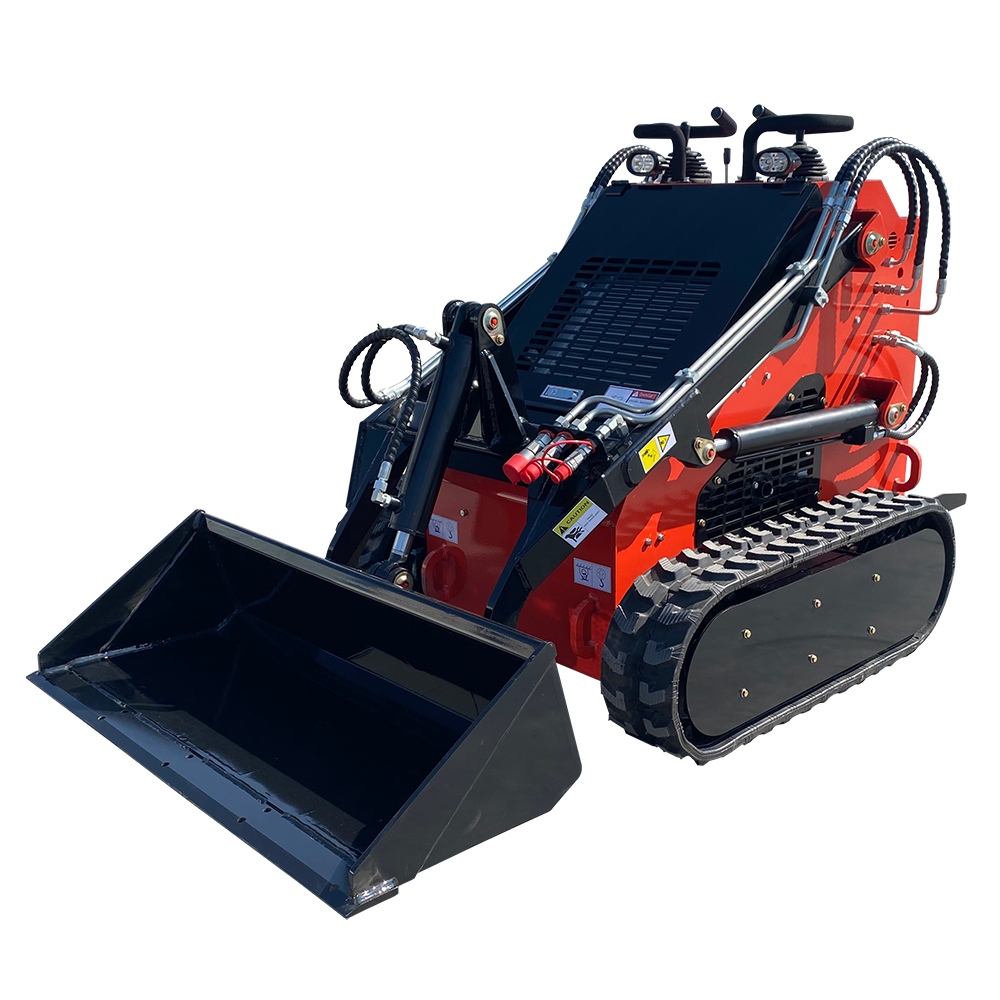

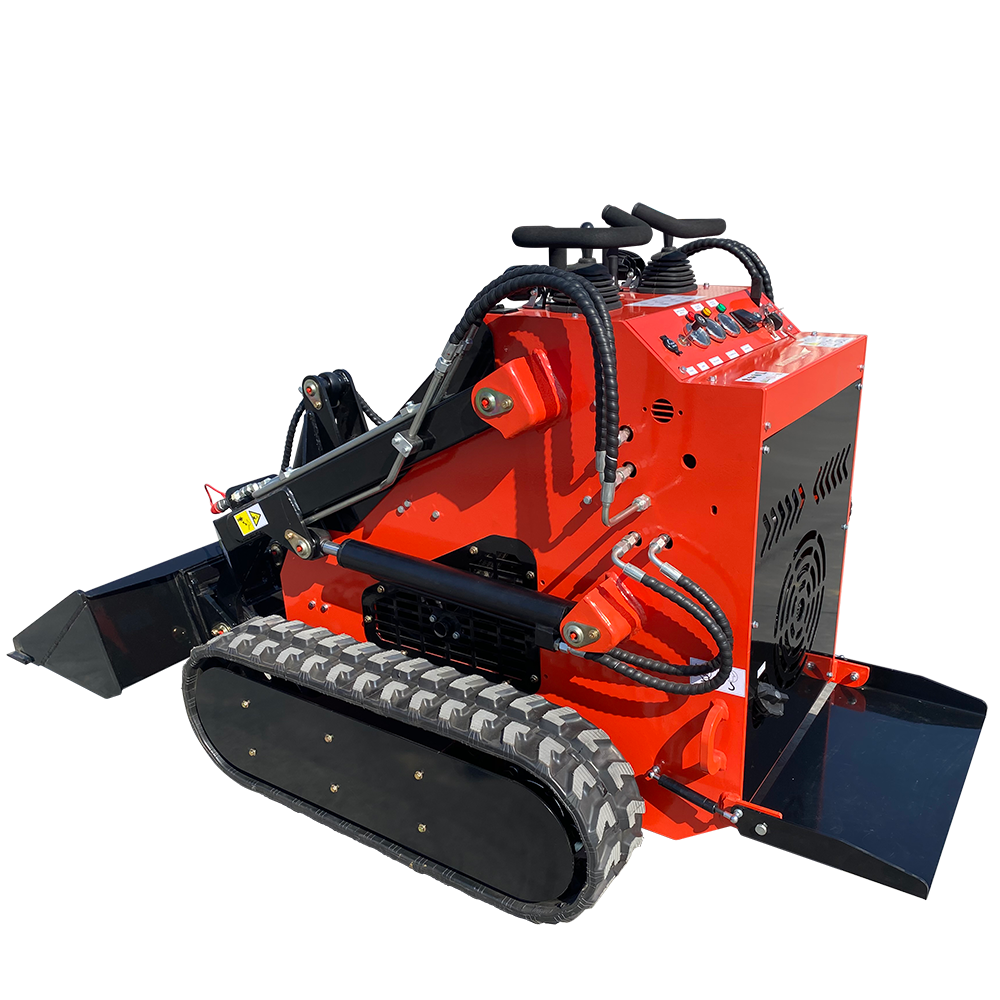

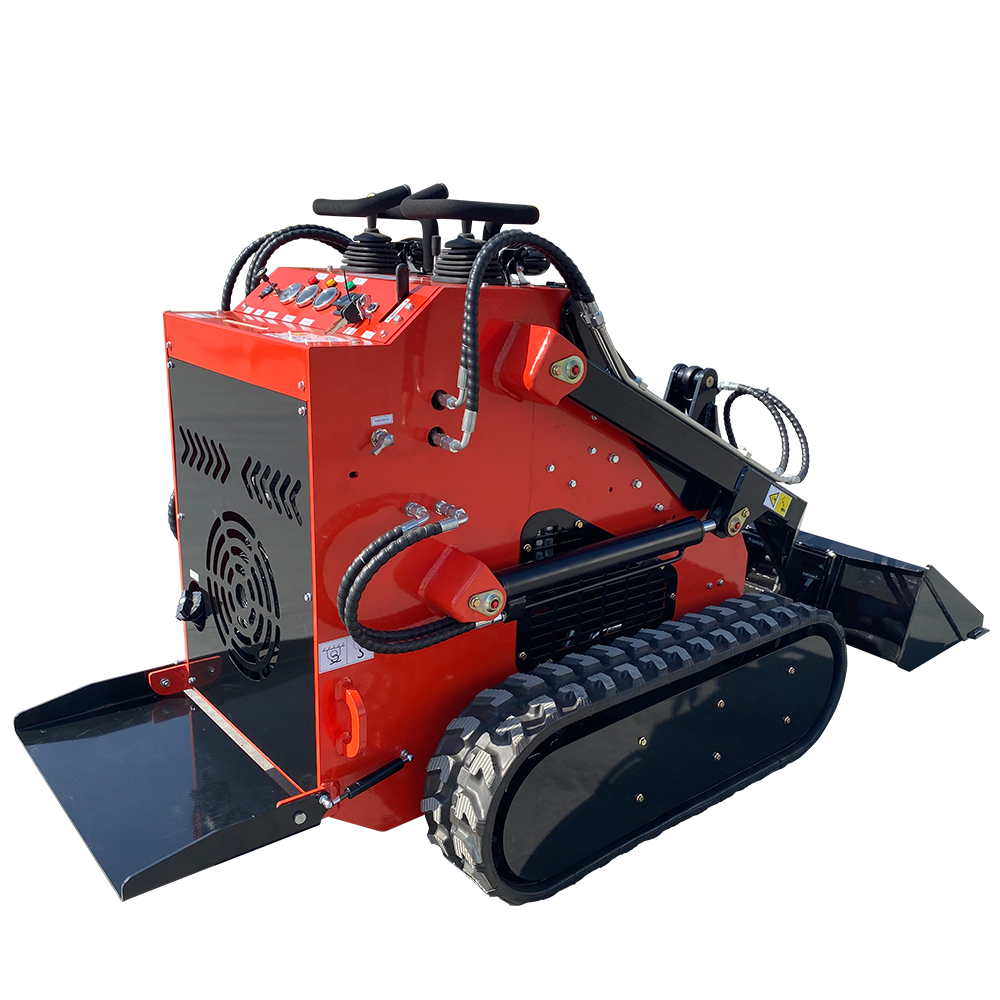

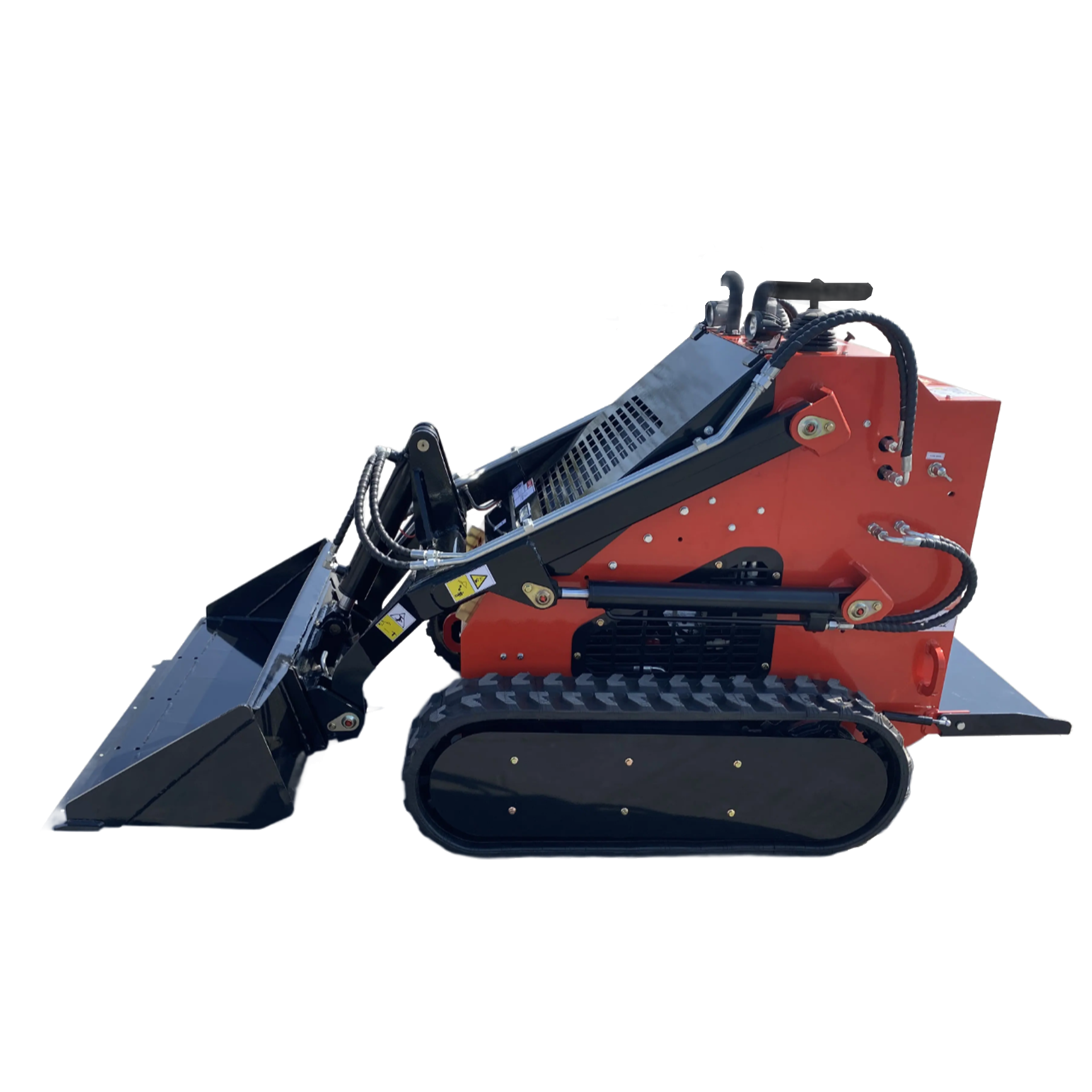

1 Ton, RATO Engine Mini Skid Steer Track Loader | LRT23
Original price was: $5,400.00.$5,380.00Current price is: $5,380.00.
The is a track style mini skid steer loader designed for compact construction work. It has a quick attach mount plate which makes it easy for an operator to connect different attachments. The loader is designed for operation in temperatures typically experienced in earth moving and construction…

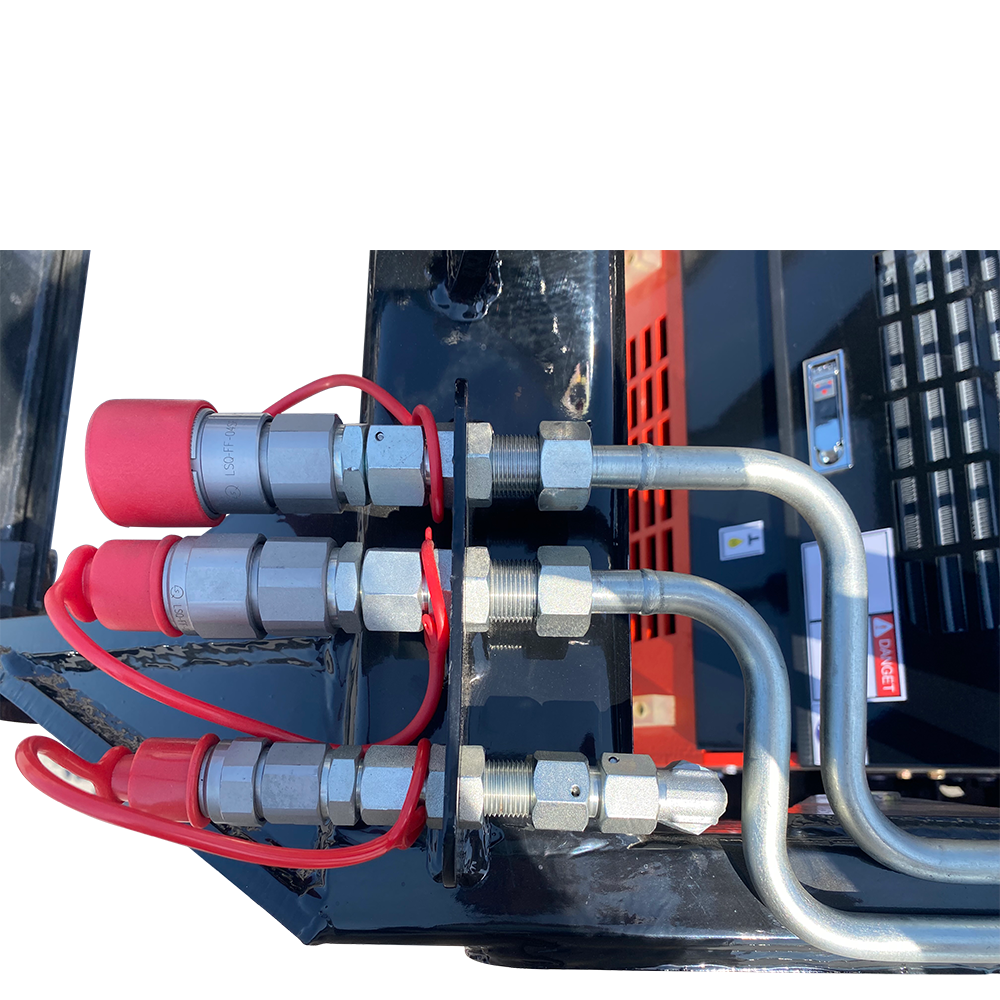

The is a track style mini skid steer loader designed for compact construction work. It has a quick attach mount plate which makes it easy for an operator to connect different attachments. The loader is designed for operation in temperatures typically experienced in earth moving and construction work environments. Manual Video Technical Data: Operation Weight: 0.98 Ton Engine: R740 Horse Power: 23 Max Angle: 30 Degree Auxiliary Hydraulic Flow Rate: 20 liters per minute (L/min). Travel System Flow Rate: 25 liters per minute (L/min). Specifics: Max.Load Capacity 200 kg Bucket Capacity 0.15 m³ Maximum Lift 375 kg Traveling Speed 0-6 km/h Rated Pressure 17 Mpa Lifting Time 4.3 s Descent Time 3.3 s Tipping Time 1.5 s Maximum Angle of the climb 30° Total Weight 890 kg Engine parameter Engine R740 engine Engine type gasoline, V-double cylinder Output power 17.1KW(23HP)/3600rpm Fuel consumption ≤6.7 L/h Starting mode Electric start Tank capacity Fuel Tank Capacity 25 L Hydraulic Tank Capacity 25L Engine oil tank capacity 1.6 L
Related products

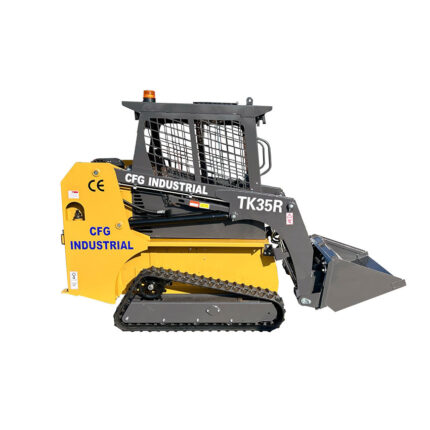

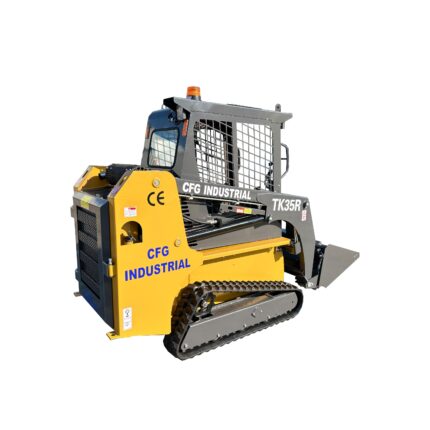

1.5 Ton, RATO Engine Skid Steer | CFG-TK35R
